This new version of the Gatling 2.4 make it much smaller and more rugged. Four X-air antennas perfectly matched together in unison, their cumulative gain forming a beam of over 15dBic. It easily accommodate a portable ground station or tracker. Available in either RHCP or LHCP polarization.

Features

Very small size relative to gain.

Excellent axial ratio and efficiency

1/4-20 mounting thread on on the back

Specs:

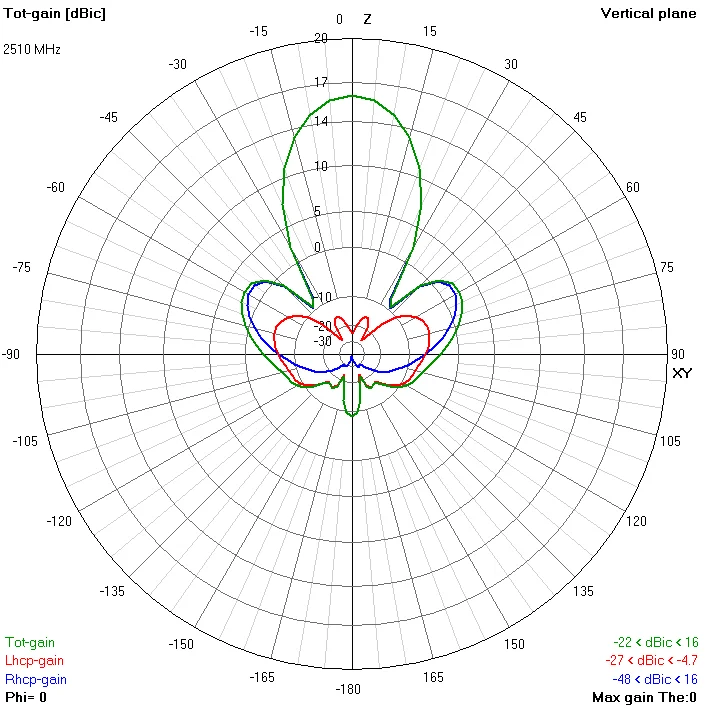

Gain: 15.5dBic

Polarization: RHCP or LHCP

Bandwidth: 2.3-2.7GHz

SWR: <=1.5:1

Weight: xxxg

Dimensions: 180x180x24mm

Connector: SMA

*Coverage where reception is at least equivalent to an omni.

**Coverage where at least 70% of the max range is obtained.
