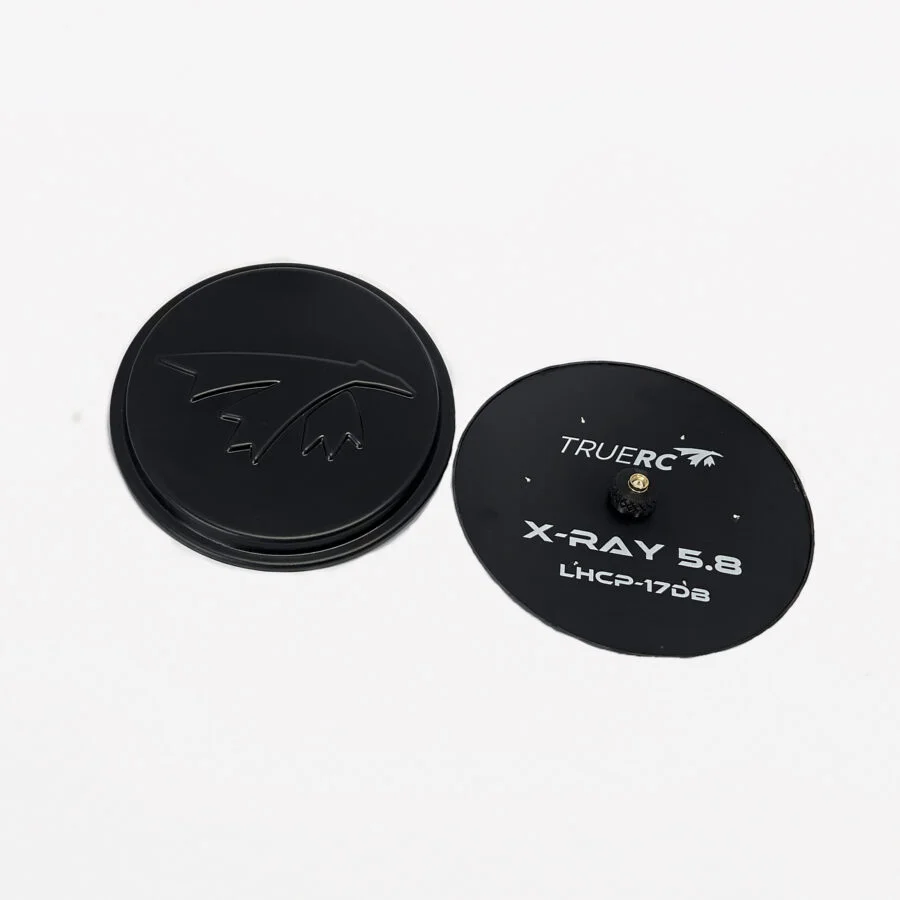

The X-RAY 5.8 is a new development of our X-AIR technology. A single feed panel format with very low side lobes, maximizing main lobe efficiency. Achieving up to 18dBic over a single element in a simple clean and thin format, the X-RAY is the physical expression of TrueRC’s design philosophy.

Features
Very low side lobes and excellent front to back ratio.
Excellent axial ratio and efficiency over a large bandwidth

Specs
Frequency: 5.4-6GHz ‘
Gain: 17-18 dBic
Polarization: RHCP or LHCP
Beam-width*: 60deg
Beam-width @-3dB**: 24deg.
Connector: SMA
Dimensions: 151mm dia. x 20mm
Weight: 82g

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
